Verstärkersektion | |
Kanäle | 7.2 |
Rated Output Power (1kHz, 1ch driven) | 170 W (4 ohms, 0.9% THD) |
Rated Output Power (20Hz-20kHz, 2ch driven) | 110 W (8 ohms, 0.06% THD) |
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) | 165 W (8 ohms, 10% THD) |
Dynamic Power per Channel (8/6/4/2 ohms) | 135 / 165 / 210 / 280 W |
| |
Surround Sound Ausstattung | |
CINEMA DSP | ja (HD3) |
DSP Programs | 24 |
Dialog Level Adjustment | ja |
Virtual Presence Speaker | ja |
Virtual Surround Back Speaker | ja |
Dialogue Lift | ja (no presence speakers required) |
SILENT CINEMA / Virtual CINEMA DSP | ja (Virtual CINEMA FRONT) |
Dolby Atmos | ja |
Dolby TrueHD | ja |
Dolby Digital Plus | ja |
DTS:X | ja |
DTS-HD Master Audio | ja |
| |
Surround Sound Processing | |
Surround:AI | ja |
Dolby Surround | ja |
| |
Audio Features | |
File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz |
DA Converter | ESS 384 kHz / 32-bit SABRE Premier DAC ES9007S |
| |
Audio Ausstattung | |
Pure Direct | ja (with video on mode) |
Compressed Music Enhancer | ja |
High-resolution Music Enhancer | ja |
YPAO multi-point measurement | ja with R.S.C. (Reflected Sound Control) and 64-bit Precision EQ Calculation |
YPAO Volume | ja |
Adaptive DRC (Dynamic Range Control) | ja |
Initial Volume & Maximum Volume Setting | ja |
A.R.T. Wedge | ja |
Bi-amp capability | ja |
Audio Delay | ja (0-500 ms) |
| |
Video Ausstattung | |
4K Ultra HD Pass-through and upscaling | ja (4K / 60p, 4:4:4) |
HDMI 3D passthrough | ja |
HDMI Audio Return Channel | ja |
HDMI upscaling | ja (Analogue to HDMI® / HDMI to HDMI) |
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync | ja |
| |
Video Features | |
HDMI eARC | ja (via future firmware update) |
| |
Connectivity | |
MusicCast Surround | ja |
| |

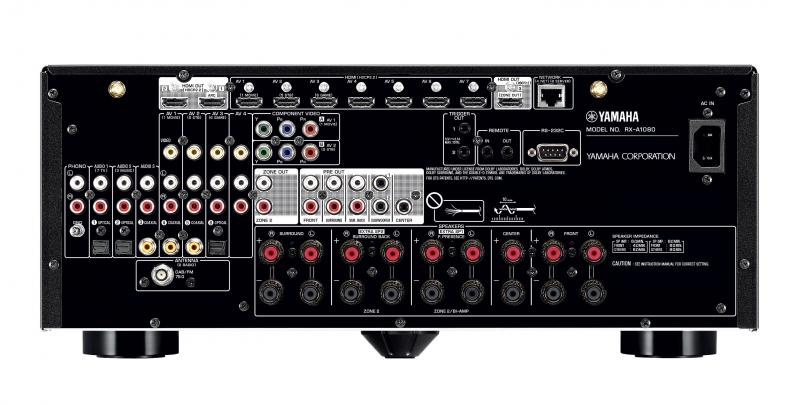

Anschlüsse | |
HDMI Eingänge / Ausgänge | 7 / 3 (HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible) |
HDMI CEC | ja (SCENE, Device Control) |
USB Input | USB Memory, Portable Audio Player |
Network Port | ja |
Wi-Fi | ja (2.4 / 5 GHz) |
AirPlay | ja |
Bluetooth | ja (SBC / AAC) |
Front AV Input | USB / Analogue Audio |
Digital Audio Input/Output: Optical | 3 / 0 |
Digital Audio Input/Output: Coaxial | 3 / 0 |
Analog Audio Input/Output | 9 (front 1) / 0 |
Phono Eingang | ja |
Component Video Input/Output | 2 / 0 |
Composite Video Input/Output | 4 / 0 |
Preout | 7.2-ch |
Headphone Output | 1 |
| |
Radiosektion | |
FM / AM Radio | ja (FM only) |
DAB Radio | ja (Availability varies by region.) |
| |
Bedienung | |
On-screen display | Graphical User Interface |
SCENE | SCENE PLUS (8 sets) |
App Control | ja (iPhone / iPad / Android phone / tablet) |
Web Browser Control | ja |
Fernbedienung | ja (Preset) |
| |
Multiroom Ausstattung | |
Zone 2 Audio Ausgang | Preout / HDMI |
Powered Zone | Zone 2 |
Zone Video Output | HDMI / Component / Composite |
Zone HDMI | ja (HDMI Zone Switching) |
Zone B Output | HDMI |
RS-232C Schnitstelle | ja |
+12V Trigger Ausgänge | 2 |
Fernsteuereingänge | 1 / 1 |
Party Mode | ja |
| |
Basics | |
Standby Power Consumption (IR only) | ≤0.1W |
Auto Power Standby | ja |
ECO mode | ja |
Abmessungen ( B x H x T ) | 435 x 182 x 439 mm (with antenna up: 435 x 259 x 439 mm) |
Gewicht | 14.9 kg |
