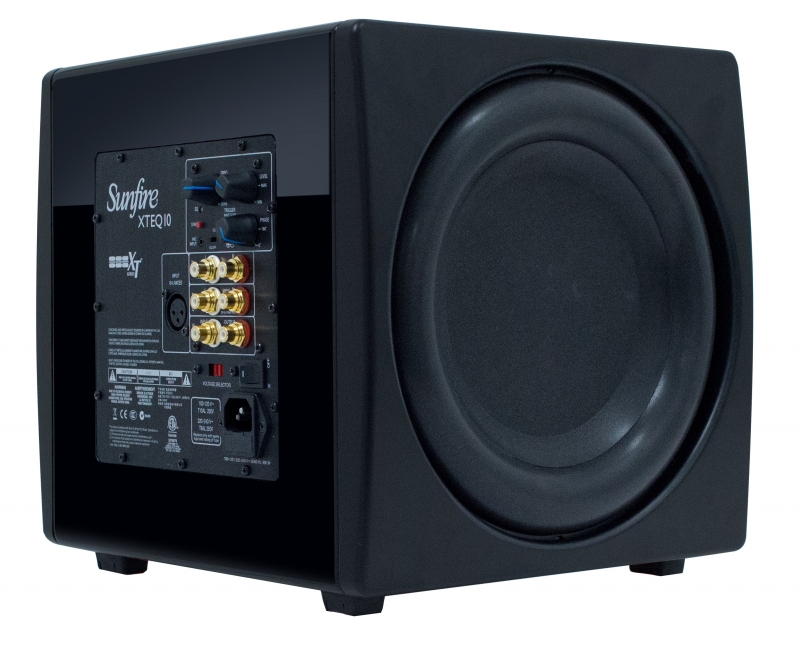

Sunfire XTEQ 10

10" Subwoofer mit Passivradiator, 2700 Watt Leistung, Vergoldete Anschlüsse, XLR und RCA Eingang, Übergangsfrequenz und Phase stufenlos verstellbar.
Sunfire XTEQ 10

Leader in Sound Quality Launches a New Sonic Experience

The launch of Sunfire XTEQ brings more than just spectacular sound. The cool, compact design of this premium subwoofer sets it apart from the paunchy pack and brings class to any space so that the listener can focus on the authoritative audio. Sunfire XTEQ is proud to deliver accurate, powerful bass that elevates the entertainment value in your home or home theater. Room-specific calibration accurately integrates an XTEQ subwoofer into your living space and existing audio system and creates – even mimics—a professional cinema experience. You’ll get up to 3,000 watts of blood-pumping bass from some of the smallest subwoofer cabinets in the industry.

The unique features of the XTEQ deliver as much bass as you would get from several 15 inch drivers mounted in a cabinet the size of a small refrigerator. Defining the standard of quality today, the XTEQ series brings a proven tracking down converter amplifier, long throw, high back-electromotive force drivers, and a fully automatic room equalizer to the audio experience. Add to that a suite of premium audiophile features like advanced auto turn-on circuitry, Anti-Walking Tread Design Feet™, gold plated connectors, soft clipping circuitry, and variable crossover level and phase control, and there’s no denying that the XTEQ is the foundation for any great home theater and audio system.

  • 10" Subwoofer mit Passivradiator
  • 2700 Watt Leistung
  • Vergoldete Anschlüsse
  • XLR und RCA Eingang
  • Übergangsfrequenz und Phase stufenlos verstellbar

Technische Daten

Leistung:2700 Watt
Frequenbereich:18 - 100 Hz
Übergangsfrequenz:30 / 85 Hz
Phase:0 - 180°
Anschlüsse:Cinch, XLR, Trigger, Mikrofon
Stromverbrauch:900 Watt
Abmessungen (B x H x T):324 x 293 x 280 mm



MODEL      XTEQ10
Driver Complement     10” Active Side
Firing Driver
10” Side Firing
Passive Radiator

Amplifier Power     2,700 Watt

Tracking Down Converter

Frequency Response     18Hz – 100Hz
THD     Less than
3% typical operation
High Pass Crossover     85Hz
Low Pass Crossover     30Hz
Phase     0 to 180 degree (variable)
Woofer Magnet     7.5” x 3.5” Deep
194 oz.
Voice Coil     3”
Cone Material     Non-pressed paper with a high
density foam edge

INPUTS
Line Level (L&R)     Line Level (RCA)
Nominal Impedance 15k Ω
Input (Mono)     Balanced (XLR)
Nominal Impedance 14k Ω
Slave     Line Level - Mono (RCA)
Nominal Impedance 8k Ω
Microphone 3.5 mm
(condense mic incl.)     3.5mm
(Microphone included)
Trigger On     12 VDC

OUTPUTS
Thru (L&R)     Line Level (RCA)
85Hz High Pass Filter / Bypass
- selectable
Slave     Line Level – Mono (RCA)
Nominal Impedance120k Ω

GENERAL
Finish     High Gloss Black
Included Accessories     Microphone and
Power Cord
Dimensions (H/W/D)     11.5” H x 12.75” W x 11” D
Weight Net     54.5 Lbs (24.8kg)
Power     100-120 / 220-240 V~,
50/60Hz, 900W
