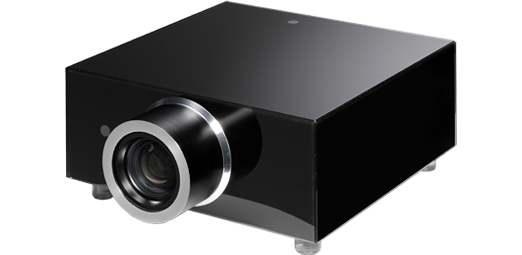

SIM2 Nero 3 PLUS Schwarz

Unser Tagespreis auf Anfrage unter [email protected] oder 043 534 57 25.


PureLED Technology, DLP.

SIM2 Nero 3 PLUS Schwarz

Unser Tagespreis auf Anfrage unter [email protected] oder 043 534 57 25.


  • High quality images from any and all video devices and in a variety of room lighting levels
  • PureLED Technology
  • Up to 1,500(*) lumens light output (the equivalent of 2,000 lumens of lamp-based projectors)
  • Horizontal and Vertical Lens Shift
  • Live Colors Calibration software
  • Contrast ratio up to 30,000:1 with DynamicBlack
  • NERO 3 PLUS ST version is equipped with a specialist short-throw ratio lens - 1.23-1.5:1 (+/-5%) -

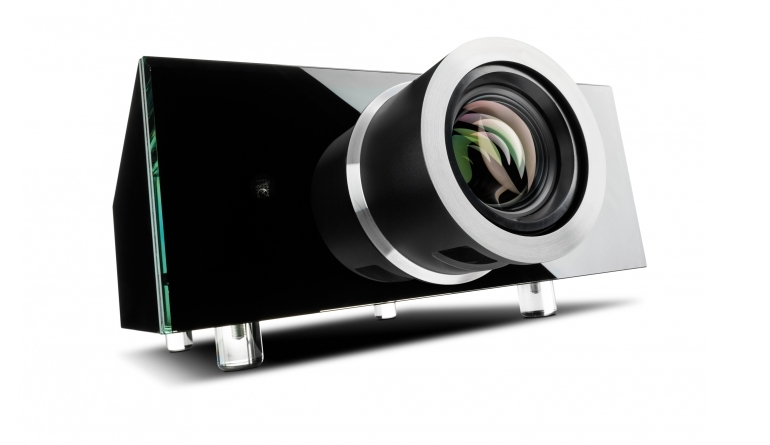

The glass exterior suggests the future, its technological center confirms it. NERO 3 PLUS is a lifestyle product designed for today’s lifestyle. LED is the source of illumination, 1-chip DLP the image technology. This combination ensures that images are bright, sharp and beautifully realistic.
With a specification list that reads: 1,500 lumens of light output (the equivalet of 2,200 lumens on lamp-based projectors), a 30,000:1 contrast ratio and a color gamut 135% that of the NTSC TV standard, this is an impressive projector. Connecting your favorite video sources is simple; thanks to the wide choice of inputs that includes two HDMI sockets.
Easily integrated into any interior design and delivering SIM2-quality picture performance, NERO 3 will enhance your home entertainment experience.

TYPICAL APPLICATION: Medium/large home theaters, media rooms and family/games room with moderate ambient light.

The NERO 3 is offered in crystal-glass surfaced BLACK (NERO 3 BG) or WHITE (NERO 3 WG).

NERO 3 ST

Sharing the same platform and features of the NERO 3 PLUS, the ST version is equipped with a specialist short-throw ratio lens: 1.23-1.5:1 (+/-5%)

TYPICAL APPLICATION: Medium home theaters, media rooms and family/games room.

The NERO 3 PLUS ST is offered in crystal-glass surfaced BLACK (NERO 3 ST BG).

Unser Tagespreis auf Anfrage unter [email protected] oder 043 534 57 25.

LIGHT ENGINE

Technology1 x chip DMD
ResolutionFull HD 1920 x 1080 pixels
Lighting systemSUPER PureLED technology
3D(*) Features
SIM2 DynamicBlack™ Technology enhanced solution (digital)
Contrast ratio (Full ON/OFF)>30,000:1 with DynamicBlack™
Brightness1,500 lumens (the equivalent of 2,200 lumens(**) of lamp-based projectors)
Expected LED lifetime20,000 hours

INSTALLATION

Lens Throw ratio NERO 3 PLUS1.51-2.88:1 (+/-5%)
Lens Throw ratio NERO 3 PLUS ST (short throw zoom lens)1.23-1.5:1 (+/-5%)
Lens shiftV +/-60% /, H +/-10%
Digital keystone adjustmentVertical and Horizontal
Picture size (inches diagonal)65-200
Aspect ratio4:3, 16:9 Anamorphic, LetterBox, panoramic, pixel to pixel + 3 custom-user adjustments

ELECTRONICS

Horiz. & vertical scan frequency15-80kHz/48-144Hz;
Color SystemPAL (B,G,H,I,M,N,60); SECAM; NTSC 3.58; NTSC 4.43
PC graphic standardsVGA, SVGA, XGA,SXGA, UXGA, WUXGA
SDTV480i/p, 576i/p;
HDTV720p 50/60, 1080i 50/60, 1080p 24/50/60 + 576p

INPUTS/OUTPUTS

Analog1 x Component - YCbCr/RGBs (RCA)
 1 x Graphic RGBHV/YCrCb (1x D-Sub 15 pin)
 1x S-Video
Digital2 x HDMI (v.1.4 with Deep Color)
Control1 x RS-232
 1 x USB (B type socket)
 1 x USB (Service only)
Miscellaneous3D Sync Out
 1x 12V 100mA output

GENERAL SPECIFICATIONS

Software controlupgradable via RS-232 serial interface or USB
Power supply100-240 VAC +/-10% (48/62 Hz)
Projector weight12 Kg. / 26.5 lbs
Projector dimensions (WxHxD)365x176x502 mm (14.4”x6.9”x19.8”) - lens and feet included

ACCESSORIES

SuppliedInstallation and user manual
 AC power cords
 Backlit remote control and batteries
 Live Colors Calibration software
OptionalSIM2 VISUS Active glasses, Emitter (optional)(*)
 SIM2 VISUS Active glasses (additional pairs)
 SIM2 Universal Ceiling Bracket
