- Key Technology & Features: Quad Link App compatible, DSD (up to DSD256 Compatible), WiFi, UpNP, Spotify Connect, vTuner, Bluetooth, AirPlay
- Audio File Formats: ALAC, WAV, FLAC, AIFF, WMA, MP3, AAC, AAC- HE, AAC+, DSD64, DSD128, DSD256
- D/A Converter: ESS ES9018 32bit DAC

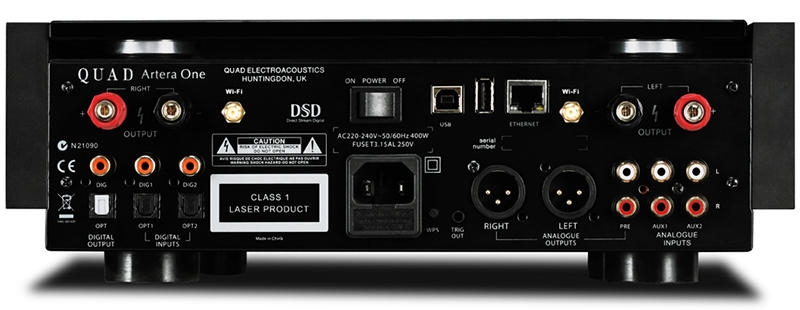

- USB Input: USB B (PC/MAC), USB A (iOS)
- Digital Audio Inputs: 2x Optical TOSlink, 2x RCA(DIG1, DIG2)
- Digital Audio Outputs: 1x Optical TOSlink, 1x RCA (DIG)
- Analogue Inputs: 2x RCA (AUX1, AUX2)
- Analogue Outputs: 2x RCA, 2x Balanced XLR, 6.3mm Headphone Jack
- Speaker Outputs: 2x Speaker Binding Post Terminals
- Sample Rate (USB B): 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 384 kHz
- Sample Rate (USB A): 44.1 kHz, 48 kHz
- Sample Rate (Digital Inputs/Outputs): 44.1 - 192 kHz
- Standby Power Consumption: <0.5W
- Pre-Amplifier Section:
- Output Level ( 1kHz): 0 - 4 Vrms (Pre Outputs)
- Variable Output: 0 – 8 Vrms (Balanced Outputs)
- Frequency Response: 20 Hz - 20 kHz, 1kHz (±0.2dB)
- Total Harmonic Distortion: <0.002% (20 Hz - 20kHz)
- Signal to Noise Ration(S/N): >103 dB (1 kHz), >110 dB (A Weighted, 1 kHz)
- Channel Separation: >100 dB (1 kHz)
- Power Amplifier Section:
- Rated Power Output: 2x 75W (8Ω)
- Frequency Response: ±0.5dB (20 Hz - 20kHz, 1kHz)
- Total Harmonic Distortion: <0.009% (10W 20 Hz - 20kHz)
- Signal to Noise Ration(S/N): >100 dB (A Weighted, ref. 75W)
- Channel Separation: >82 dB (A Weighted, ref. 1W)
- Dynamic Range (A-wtd): >98 dB
