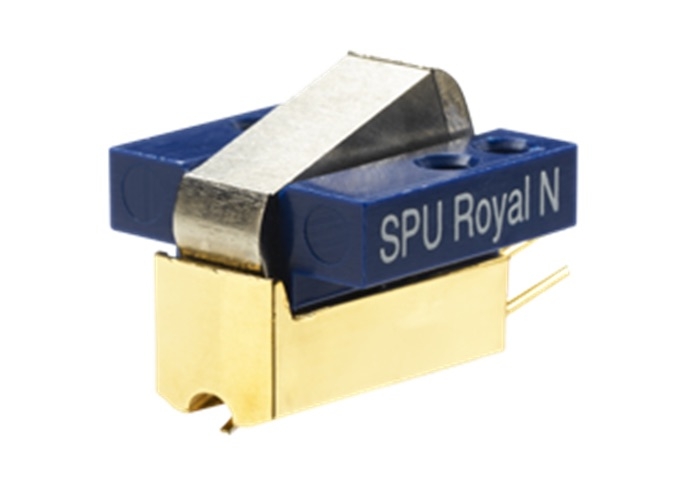

Ortofon SPU Royal N

Nadelschliff: Nude Ortofon Replicant 100, Ausgangsleistung: 0.2mV, Kanaltrennung: 25dB, Frequenzgang: 20 Hz-60'000 Hz, Auflagegewicht: 2.5-3.5 gr
Ortofon SPU Royal N
Preis pro Stück
Lieferung in 1-2 Tagen geliefert
Abholung in 1-2 Tagen abholbereit


Versandkosten Gratis
Garantie 2 Jahr(e)

Ortofon SPU Royal N  CHF 1449.00
Garantieverlängerung auf 6 Jahre CHF 220.00
Abholservice im Garantiefall CHF 19.00
Ortofon SPU Royal N
Gesamtpreis inkl. 7.7% MwSt 1'449.00
Ratenzahlung - Laufzeit 36 Monate CHF 43.90 / Monat


The SPU Royal N provides the same sound reproduction properties as the SPU Royal GM series


Features:
- The addition of Ortofon’s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience.
- Electrum coils, consisting of a gold and silver alloy, provides uncolored and precise transmission of armature movements while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.
- High purity 6-nines copper wiring ensures impeccable signal transmission and preservation of the finest of microdynamic detail.
The SPU Royal N is sold without the integrated headshell unit.

Listeners who wish to mount the SPU Royal N on a traditional headshell may do so by using SPU N adaptor. Those with vintage SPU-type headshells can use the Royal N to recreate an authentic and functional SPU cartridge. NB: Vintage SPU-type headshells are no longer available.

tput voltage at 1000 Hz, 5cm/sec. - 0.2 mV
Channel balance at 1 kHz < 1 dB
Channel separation at 1 kHz  > 25 dB
Channel separation at 15 kHz  > 20 dB
Frequency response - 20-20.000 Hz + 1,5/- 0 dB
Tracking ability at 315Hz at recommended tracking force *)  > 70 µm
Compliance, dynamic, lateral - 8 µm/mN
Stylus type - Nude Ortofon Replicant 100
Stylus tip radius - r/R 5/100 µm
*) Typical value

Tracking force range - 2.5-3.5 g (25-35 mN)
Tracking force, recommended - 3.0 g (30 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 6 ohm
Recommended load impedance > 100 ohm
Coilwire material - Electrum
Cartridge colour - Black
Cartridge weight - 13 g
