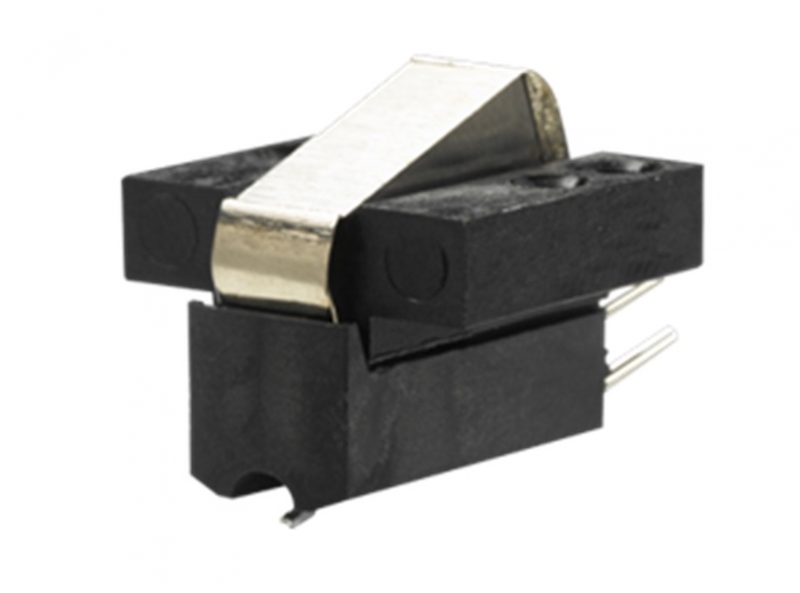

Ortofon SPU Classic N

Nadelschliff: Nude Spherisch, Ausgangsleistung: 0.3mV, Kanaltrennung: 20dB, Frequenzgang: 20 Hz-25'000 Hz, Auflagegewicht: 3.0-5.0 gr
Ortofon SPU Classic N
Preis pro Stück
Lieferung in 1-2 Tagen geliefert
Abholung in 1-2 Tagen abholbereit


Versandkosten Gratis
Garantie 2 Jahr(e)

Ortofon SPU Classic N  CHF 679.00
Garantieverlängerung auf 6 Jahre CHF 135.00
Abholservice im Garantiefall CHF 19.00
Ortofon SPU Classic N
Gesamtpreis inkl. 7.7% MwSt 679.00
Ratenzahlung - Laufzeit 36 Monate CHF 20.57 / Monat

The SPU Classic N provides the same sound reproduction properties as the SPU Classic GM seriesThe SPU Classic N is sold without the integrated headshell unit.The SPU Classic N is a Moving Coil (MC) cartridge with an 18µm spherical stylus profile.Listeners who wish to mount the SPU Classic on a traditional headshell may do so by using SPU N adaptor. Those with vintage SPU-type headshells can use the Classic N to recreate an authentic and functional SPU cartridge. NB: Vintage SPU-type headshells are no longer available.

Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
Channel balance at 1 kHz  < 1 dB
Channel separation at 1 kHz  > 20 dB
Channel separation at 15 kHz  > 10 dB
Frequency response - 20-20.000 Hz ± 3 dB
Tracking ability at 315Hz at recommended tracking force *) - 65 µm
Compliance, dynamic, lateral - 8 µm/mN
Stylus type - Nude spherical
Stylus tip radius - R 18 µm
*) Typical value

Tracking force range - 3.0-5.0 g (30-50 mN)
Tracking force, recommended - 4.0 g (40 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 6 ohm
Recommended load impedance  > 10 ohm
Coilwire material - High Purity Copper (OFC)
Cartridge colour - Black
Cartridge weight - 13 g
