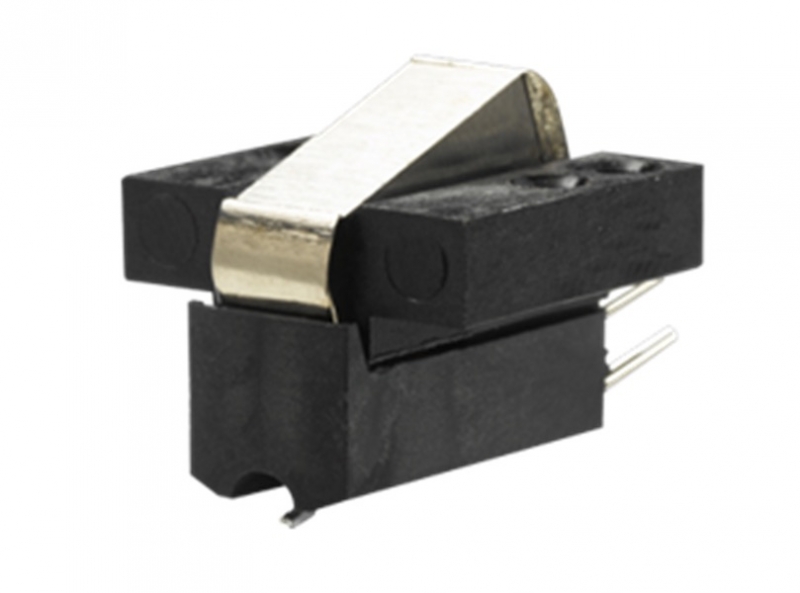

Ortofon SPU Classic N E

Nadelschliff: Nude Eliptisch, Ausgangsleistung: 0.2mV, Kanaltrennung: 20dB, Frequenzgang: 20 Hz-25'000 Hz, Auflagegewicht: 3.0-5.0 gr
Ortofon SPU Classic N E
Preis pro Stück
Lieferung in 1-2 Tagen geliefert
Abholung in 1-2 Tagen abholbereit


Versandkosten Gratis
Garantie 2 Jahr(e)

Ortofon SPU Classic N E  CHF 790.00
Garantieverlängerung auf 6 Jahre CHF 180.00
Abholservice im Garantiefall CHF 19.00
Ortofon SPU Classic N E
Gesamtpreis inkl. 7.7% MwSt 790.00
Ratenzahlung - Laufzeit 36 Monate CHF 23.94 / Monat

The SPU Classic N E provides the same sound reproduction properties as the SPU Classic GM E series

The SPU Classic N E is sold without the integrated headshell unit.

The SPU Classic N E is a Moving Coil (MC) cartridge with an elliptical stylus profile and provides more detailed sound reproduction and expansive imaging.

Listeners who wish to mount the SPU Classic N E on a traditional headshell may do so by using SPU N adaptor. Those with vintage SPU-type headshells can use the Classic N E to recreate an authentic and functional SPU cartridge. NB: Vintage SPU-type headshells are no longer available.

Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
Channel balance at 1 kHz  < 1 dB
Channel separation at 1 kHz  > 20 dB
Channel separation at 15 kHz  > 10 dB
Frequency response - 20-20.000 Hz + 3/- 2 dB
Tracking ability at 315Hz at recommended tracking force *)  65 µm
Compliance, dynamic, lateral - 8 µm/mN
Stylus type - Nude elliptical
Stylus tip radius - r/R 8/18 µm
*) Typical value

Tracking force range - 3.0-5.0 g (30-50 mN)
Tracking force, recommended - 4.0 g (40 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 6 ohm
Recommended load impedance > 10 ohm
Coilwire material - High Purity Copper (OFC)
Cartridge colour - Black
Cartridge weight - 13 g
