Ortofon Mono CG 25 DI MKII

Nadelschliff: Spherisch, Ausgangsleistung: 1.5mV, Frequenzgang: 20 Hz-18'000 kHz, Auflagegewicht: 3.0-5.0 gr
Ortofon Mono CG 25 DI MKII
Preis pro Stück
Lieferung in 1-2 Tagen geliefert
Abholung in 1-2 Tagen abholbereit


Versandkosten Gratis
Garantie 2 Jahr(e)

Ortofon Mono CG 25 DI MKII  CHF 790.00
Garantieverlängerung auf 6 Jahre CHF 180.00
Abholservice im Garantiefall CHF 19.00
Ortofon Mono CG 25 DI MKII
Gesamtpreis inkl. 7.7% MwSt 790.00
Ratenzahlung - Laufzeit 36 Monate CHF 23.94 / Monat

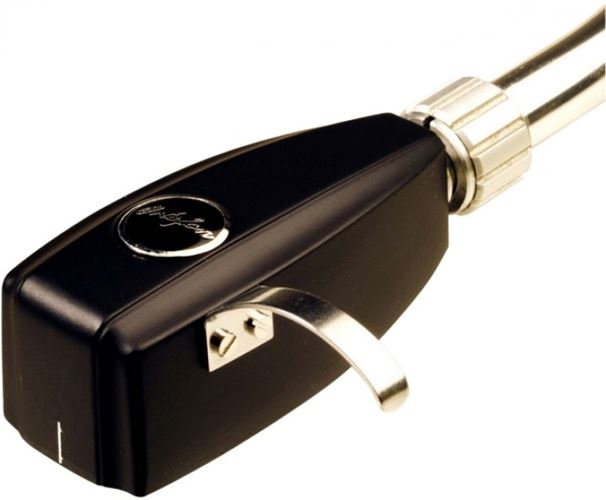

 The SPU Mono CG 25 Di MkII is for the playback of early 25 µm mono recordings.

The Mono CG 25 Di MkII is an SPU-style Moving Coil cartridge with a spherical stylus profile, for the playback of early 25 µm mono recordings. The CG 25 Di MkII provides an authentic method of playing back these early vinyl recordings with a remarkable level of sonic accuracy.

This cartridge features a 1.5mV output, which makes it suitable for use with a variety of medium-gain moving coil transformers. Ortofon ST-M25 moving coil transformer is designed exclusively for the SPU Mono CG 25 Di MkII.

Output voltage at 1000 Hz, 5cm/sec. - 1.5 mV
Frequency response - 20-15.000 Hz + 3/- 1 dB
Tracking ability at 315Hz at recommended tracking force *)  > 60 µm
Stylus type - Spherical
Stylus tip radius - R 25 µm
Tracking force range - 3.0-4.0 g (30-40 mN)
Tracking force, recommended - 3.5 g (35 mN)
*) Typical value

Tracking angle - 20°
Internal impedance, DC resistance - 6 ohm
Recommended load impedance  > 100 ohm
Cartridge body material - Grinded wood and resin composite
Coilwire material - High Purity Copper (OFC)
Cartridge colour - Shiny black
Cartridge weight - 33 g
