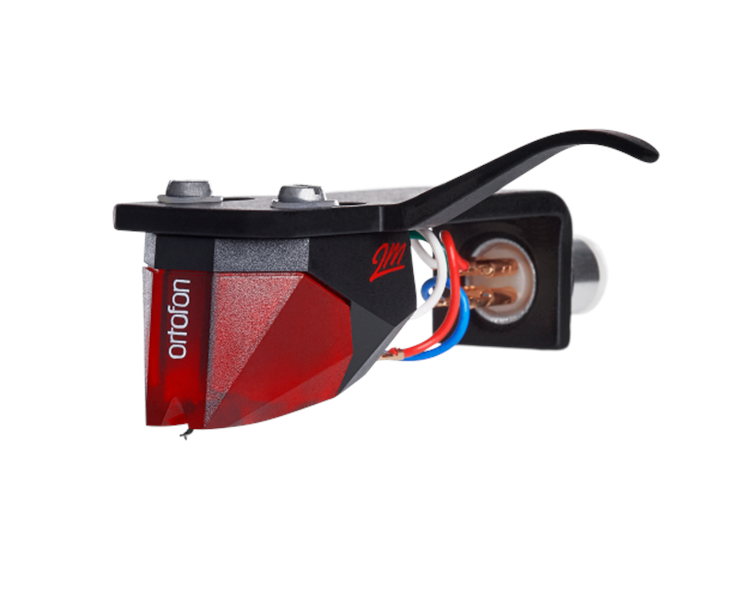

Ortofon 2M Red Premounted

Tagespreis auf Anfrage unter [email protected] oder 043 534 57 25.
Ortofon 2M Red Premounted
Preis pro Stück
Lieferung in 1-2 Tagen geliefert
Abholung in 1-2 Tagen abholbereit


Versandkosten Gratis
Garantie 2 Jahr(e)
Ortofon 2M Red Premounted  CHF 139.00
Garantieverlängerung auf 6 Jahre CHF 80.00
Abholservice im Garantiefall CHF 19.00
Ortofon 2M Red Premounted
Gesamtpreis inkl. 8.1% MwSt 139.00

https://cms.azone.ch/product/index/28109


Step into the music with the 2M Red

With the 2M Red you will hear the music come to life on its own terms. It is like taking a step into music itself. This is our entry-level cartridge in the series, but what an entry.

Featues:
The 2M Red features a tipped Elliptical diamond and split pole pins with a copper wire.
The engine provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy.

Designed for easy mounting of the cartridge, and for the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

2M Red delivers an open, dynamic sound with a slight touch of warmth.



Maintenance Set included the package

2M Red Maintenance Set included the package:

1 x Stylus brush
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7

2M Red Verso Maintenance Set included the package*:

1 x Stylus brush
1 x Allen key Torx 6
1 x Allen key Torx 8
2 x Screw M2,0 x 6

Unser Tagespreis auf Anfrage unter [email protected] oder 043 534 57 25.
https://cms.azone.ch/product/index/28109

Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV
Channel balance at 1 kHz - 1.5 dB
Channel separation at 1 kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency response - 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 70 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 1.6-2.0 g (16-20 mN)
Tracking force, recommended - 1.8 g (18 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 1.3 kOhm
Internal inductance - 700 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Red
2M standard and 2M Verso cartridges weight - 7.2 g

Replacement stylus unit - 2M Red (interchangeable with 2M Blue and 2M Silver)

Unser Tagespreis auf Anfrage unter [email protected] oder 043 534 57 25.
