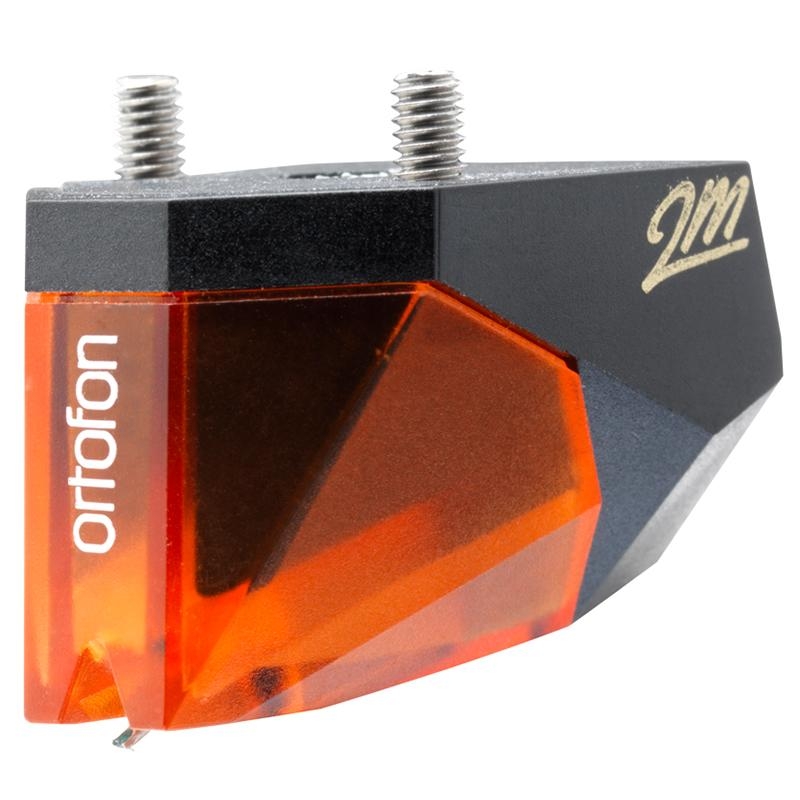

Ortofon 2M Bronze Verso

2M BRONZE VERSO FEATURES A SPECIAL UPGRADED ENGINE AND SPLIT POLE PINS WITH A SILVER PLATED COPPER WIRE.
Ortofon 2M Bronze Verso
Preis pro Stück
Lieferung Versandbereit
Abholung in 1-2 Tagen abholbereit


Versandkosten Gratis
Garantie 2 Jahr(e)

Ortofon 2M Bronze Verso  CHF 375.00
Garantieverlängerung auf 6 Jahre CHF 105.00
Abholservice im Garantiefall CHF 19.00
Ortofon 2M Bronze Verso
Gesamtpreis inkl. 7.7% MwSt 375.00

Ortofon 2M Bronze Verso

2M BRONZE VERSO FEATURES A SPECIAL UPGRADED ENGINE AND SPLIT POLE PINS WITH A SILVER PLATED COPPER WIRE

  • Nude Fine Line diamond
  • Silver plated copper wire
  • Reduced distortion and record wear
  • Special upgraded engine
  • Cartridge body manufactred from Noryl plastic/glass combination, ensures high rigidity while eliminating unwanted resonances
  • For demanding applications
  •  Output voltage at 1000 Hz, 5cm/sec.: 5 mV
  • Channel balance at 1 kHz: 1 dB
  • Channel separation at 1 kHz: 26 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at - 3dB: 20-29.000 Hz
  • Frequency response: 20-20.000 Hz + 2 / - 0 dB
  • Tracking ability at 315Hz at recommended tracking force: 80 µm
  • Compliance, dynamic, lateral: 22 µm/mN
  • Stylus type: Nude Fine Line
  • Stylus tip radius: r/R 8/40 µm
  • Tracking force range: 1,4-1,7g (14-17 mN)
  • Tracking force, recommended: 1,5 g (15 mN)
  • Tracking angle: 20º
  • Internal impedance, DC resistance: 1,2 kOhm
  • Internal inductance: 630 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 150-300 pF
  • Cartridge colour, body/stylus: Black/Bronze
  • Cartridge weight: 7,2 g
  • Replacement stylus unit: 2M Bronze (interchangeable with 2M Black)
