NAD PP-4

The PP 4 Digital Phono/USB Preamplifier makes it easy to add phono to many of today's stereo amplifiers and AV receivers that have either eliminated the phono input or included a low quality circuit for attaching your turntable.
NAD PP-4
Preis pro Stück
Lieferung Versandbereit
Abholung Abholbereit (bitte reservieren)


Versandkosten Gratis
Garantie 3 Jahr(e)

NAD PP-4  CHF 218.00
Garantieverlängerung auf 6 Jahre CHF 195.00
Abholservice im Garantiefall CHF 19.00
NAD PP-4
Gesamtpreis inkl. 7.7% MwSt 218.00

NAD 3 Jahre Dynavox Schweiz Garantie

NAD Garantieverlängerung:
3 statt 2 Jahre Garantie!


Wir freuen uns, Ihnen passend zu den NAD Premiumprodukten kostenlos die erweiterte DYNAVOX-SWISS-Garantie von drei Jahren anbieten zu können.

Diese erhalten Sie ausschliesslich bei offiziellen DYNAVOX-Händlern - wie azone.ch!


NAD PP-4

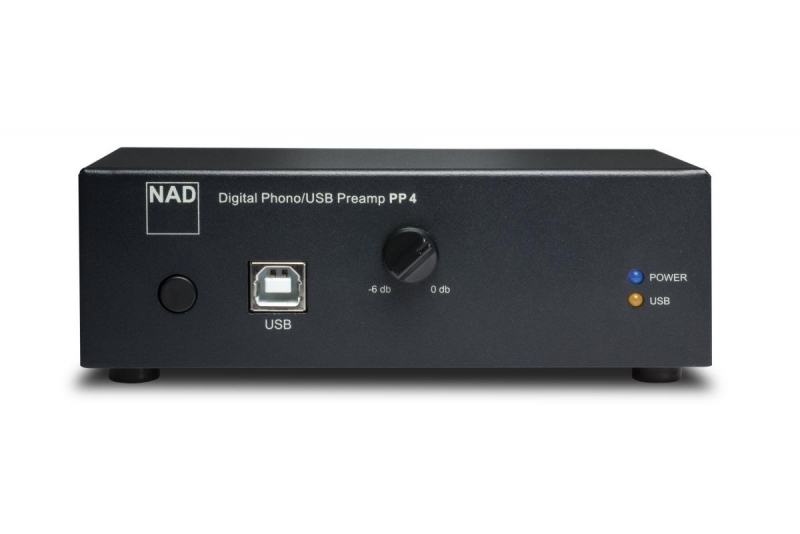

Show your vinyl collection some serious love. Offering superb measured and sonic performance, NAD's two simple solutions, the PP 4 Digital Phono/USB Preamplifier makes it easy to add phono to many of today's stereo amplifiers and AV receivers that have either eliminated the phono input or included a low quality circuit for attaching your turntable. As part of NAD's commitment to the environment, the PP 4 features a more efficient "green" power supply that reduces power consumption. The PP 4 goes one step further with a USB interface, shielded USB cable and recording level control which combine to reduce noise and improve the analogue-to-digital conversion process. The PP 4's Auto Power Down feature saves energy by automatically powering the PP 4 to OFF when not in use.

Our PP 4 Digital Phono/USB Preamplifier enables you to digitise your treasured vinyl collections to a PC or Mac. It features inputs for both MM (moving magnet) and low noise MC (moving coil) types for a wide variety of phono cartridges, and there is a line input to allow for the transfer of cassette tapes. The PP 4 also includes VinylStudio Lite Software for ripping LPs and burning audio CDs. The PP 4 Phono-to-USB Preamp offers a complete hardware and software solution with exceptional flexibility to record from LP or tape.

MC Specifications

  • Input Impedance (R and C): 100 ohm + 180pF
  • Gain at 1kHz: 58dB
  • Input sensitivity (ref. 200mV ouput): 0.38mV
  • Signal to noise (A weighted, with cartridge connected): 78dB
  • Input overload (20Hz/1kHz/20kHz): 0.65/6.5/60mV
  • Rated Distortion (THD 20Hz - 20kHz): <0.03%
  • RIAA response accuracy: ±0.3dB
  • Infrasonic filter: 5 Hz, -14dB; 10 Hz, -3dB
  • Digital output (USB): 16 bit linear PCM
  • Sampling frequency: 48kHz
  • Dynamic range: 86dB
MM Specifications
  • Input Impedance (R and C): 47k ohm + 200pF
  • Gain at 1kHz: 35dB
  • Input sensitivity (ref. 200mV ouput): 5mV
  • Signal to noise (A weighted, with cartridge connected): 76dB
  • Input overload (20Hz/1kHz/20kHz): 10/100/900mV
  • Rated Distortion (THD 20Hz - 20kHz): <0.03%
  • RIAA response accuracy: ±0.3dB
  • Infrasonic filter: 5 Hz, -14dB; 10 Hz, -3dB
  • Digital output (USB): 16 bit linear PCM
  • Sampling frequency: 48kHz
  • Dynamic range: 89dB

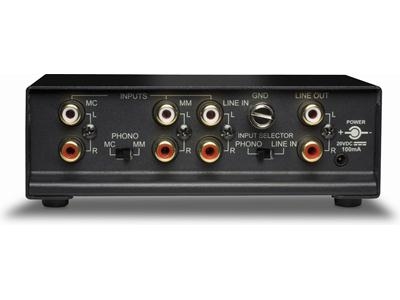

Line In
  • Input Impedance: 47k + 180pF
  • Rated Distortion (THD 20Hz - 20kHz): <0.008%
  • Signal to noise, A weighted: -115dB
  • Maximum Input Level: 5.3V
Line Out
  • Output Impedance: 100 ohm
  • Maximum Output Level: 5.3V
General Specifications
  • Record level: 0dB to -6dB
  • Dimensions, excluding power supply: 5.3" x 1.9" x 2.8"
