Jamo D 600 SUB

Der Sub 600 ist ein geschlossener, aktiver Subwoofer mit einer Nennleistung von 200 Watt. Ein 220-mm-Tieftöner sorgt für einen Übertragungsbereich von 33-200 Hz.

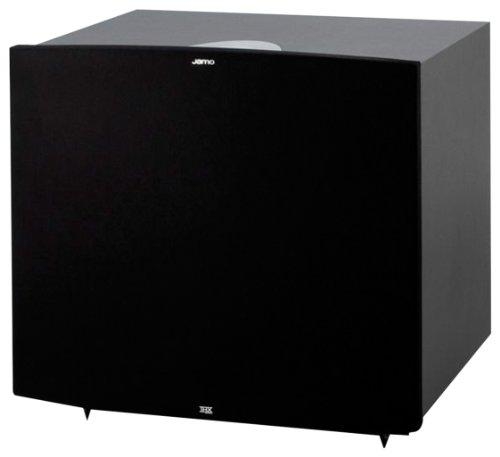

Jamo D 600 SUB

The D 600 SUB is built around a very powerful 380mm / 15inch low frequency driver, controlled by our Motional Feed Back (MFB) and equipped with a solid 400W (continuous output) class-D amplifier capable of delivering peak power in excess of 1600W.

The standby power consumption is less than 1W. To make it easy to place the D 600 SUB in the room it is equipped with adjustable Boundary Gain Compensation. The Boundary Gain can be adjusted in steps, and adjusts in the region between 55Hz and 20Hz with as much as -10dB at 20Hz.

All controls on the D 600 SUB are placed in the top of the cabinet, easily accessible. All functions are controlled by a dedicated digital processor that ensures maximum precision and repeatability.

State-of-the-Art Technology Jamo has developed driver units specifically for this high-end THX Ultra 2 system. Identical drivers used in both the LCR and surround-speakers result in perfect balance, and a 15"/1600W subwoofer equipped with Motional Feedback ensures dynamic, detailed and precise reproduction of even the lowest spectrum. The subwoofer is equipped with a unique touch interface, giving the user a variety of settings.



Variable Phase Control  0 to -180
Sensitivity (dB, 2.8V/1m)  109 dB
Frequency Response (Hz, +/-3dB)  20 _x001A_ 200
Weight (Kg/lb)  32 / 70.5
Woofer (mm/in)  380 / 15
Crossover Frequency  40-200
Overall Dimensions (mm/in, HxWxD)  557 x 587 x 501, 21.9 x 23.1 x 19.7
Rated output (W)  600Wrms@4O@THD+N <1%
Power Handling (Watts Long/Short Term)  800Wrms@4O/1600Wpk@4O
System Type  Active DSP based subwoofer, closed enclosure, motional feedback
Inputs  Line, LFE, Speaker Level
Power Mode Switch  Off / Auto / On
