Audio Features | Stereo Power | 65W per channel | | Multichannel Power (all channels driven) | 65W x 5 | | Amplifier Type | Digital | | Frequency Response | 20Hz - 20kHz | | THD | 0.1% | | Signal-to-noise Ratio (IHF-A) | -90dB | | Slew Rate | 40V/sec | | Input Sensitivity/Impedance | 250mV/46k | | Compressed Audio Bit Rates | PCM, WMA (DRM-free version only): WMA9, CBR @ 192kbps, VBR @ 355kbps, MP3: 32kbps - 320kbps bitrates, including variable bitrate encoding | | Cover Art Support | Cover-art display funtion | | Audio Formats | CDDA (CD digital audio), CD-R/-RW | Surround Processing Features | Dolby Digital Plus | Yes | | Dolby TrueHD | Yes | | Dolby Digital | Yes | | Dolby Pro Logic II with Movie, Music and Game Mode | Yes | | DTS-HD / DTS-HD Master Audio | Yes | | Headphone Mode | Yes | Audio Connectivity Features | Digital Audio Input Rear (Coax / Optical) | 1/2 | | Analog Audio Input (Rear) | 2 | | Headphone Output | 3.5mm | | iPod® Connectivity | Yes, via The Bridge IIIP (optional) | | Speaker Terminals | Colour-coded binding posts | Player Specification and Features | Player compatibility | 3-D Blu-ray Disc receiver | | Region Code | B2 or C5 | | Supported Disc Formats | 127mm (5") or 76mm (3") BD Video (single-layer or double-layer), DVD-Video, DVD+R/+RW, DVD-R/-RW, CDDA (CD digital audio), CD-R/RW discs | | Still-Image Formats | JPEG | | JPEG Resolution | 5 megapixles, 5MB file size | | Supported Compressed Video Formats | MP3, WMA | | Video Frequency Response (DVD/CD) | 20Hz - 20kHz | | Signal-to-noise Ratio (IHF-A) | -90dB | | Dynamic Range DVD/CD (16-bit) | 90dB | | Wow & Flutter | below measurable limits | | Fast Play Rates | 2x, 4x, 16x, 100x | | Slow Play Rates | 1/2x, 1/4x, 1/8x, 1/16x | | Random Play | CD only | | Repeat Play | 1 track, 1 disc | Video Features | Television Format | NTSC or PAL (selectable) | | HDMI Output | HDMI output with Audio Return Channel | | HDMI Version | v.1.4a with 3-D support and 30/36-bit Deep Colour | Data Connectivity Features | Ethernet Connection | Yes | | USB Port for Playback and Software Updates | Yes | Satellite Speaker Features | Type | SAT-TS60 Satellites | | Low-Frequency Transducer | 2 x 75mm flat-panel | | High-Frequency Transducer | 19mm CMMD Lite dome | | Maximum Recommended Amplifier Power | 150 W | | Frequency Response | 45Hz - 20kHz (-6dB) | | Nominal Impedance | 8 ohms | | Sensitivity (2.83V @1m) | 86 dB | | Wall-Mount Capable | Included | | Farbe | Schwarz glanz | | Grille Color | Schwarz | | Dimensions (H x W x D Metric/English) | 299mm x 110mm x 88mm | | Weight (Metric/English) | 1.5kg | Center Speaker Features | Type | CEN-TS60 Centre | | Low-Frequency Transducer | 2 x 75mm flat-panel | | High-Frequency Transducer | 19mm CMMD Lite dome | | Maximum Recommended Amplifier Power | 150 Watt | | Frequency Response | 45Hz - 20kHz (-6dB) | | Nominal Impedance | 8 Ohm | | Sensitivity (2.83V@1m) | 83 dB | | Finish | Schwarz glanz | | Grille Color | Black | | Dimensions (H x W x D Metric, English) | 110mm x 272mm x 88mm | | Weight (Metric, English) | 1.5kg | Subwoofer Features | Low-Frequency Transducer | 200mm (8") | | Enclosure Type | s | | Amplifier Power (RMS) | 200 W | | Controls | Volume, phase, bass boost | | Finish | Schwarzer Glanz | | Power Requirement | 220V - 240V AC, 50Hz/60Hz | | Dimensions (H x W x D Metric, English) | 353mm x 267mm x 267mm | | Weight (Metric, English) | 9kg | | Frequency Response | 45Hz - 200Hz (-6dB) | Remote Control Features | System Remote Type | Pre-programmed/learning | FM Tuner Features | Frequency Range | 87.5 - 108.0 MHz | | Usable Sensitivity (IHF) | >14dBf | | Signal-to-Noise Ratio (Mono/Stereo) | -60dB/-55dB | | Distortion (Mono/Stereo) | 0.3%/0.5% | | Preset Stations | 30 | | RDS | FM RDS | Other Features | EzSet Setup Capability | Yes | | On-screen Display | Yes | | Full-color, High-definition, Graphical On-screen Interface | Yes | | Multi-language Graphical On-screen Interface | Yes | | Screen Saver | Yes | | Detachable IEC Power Cord | Yes | General Specifications | Dimensions (Source Unit H x W x D Metric/English) | 102mm x 401mm x 260mm | | Weight (Source Unit Metric/English) | 6.5kg |
|
Audio Anlagen
Endverstärker

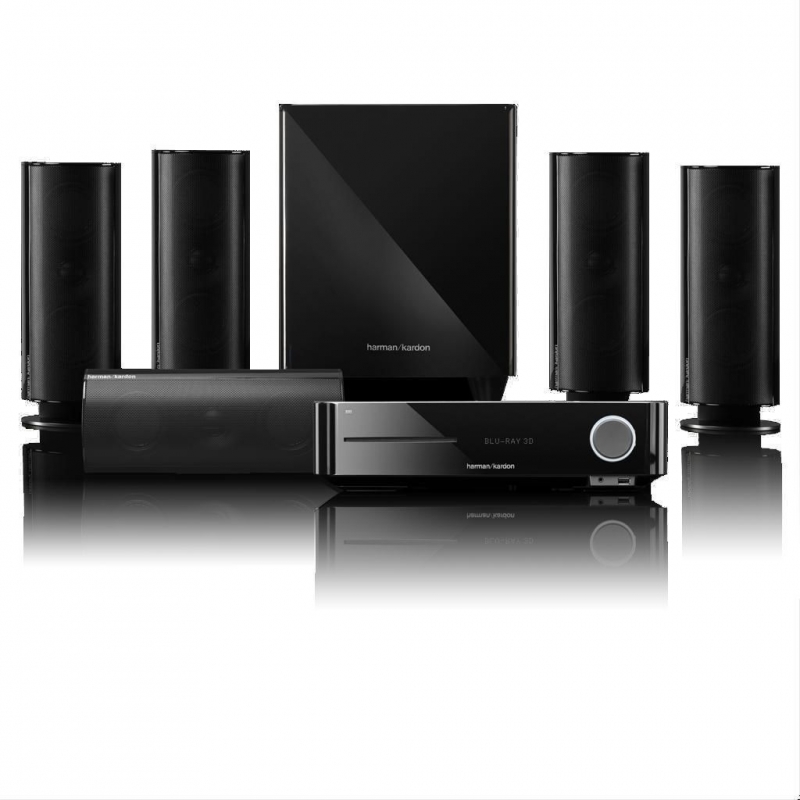

Harman Kardon BDS 870 de - Produktinformation
