Emotiva XPA-3 Gen3
3 Channel Audiophile Home Theater Power Amplifier.
Emotiva XPA-3 Gen3
Preis pro Stück
Lieferung in 1-2 Tagen geliefert
Abholung in 1-2 Tagen abholbereit


Versandkosten Gratis
Garantie 2 Jahr(e)
Emotiva XPA-3 Gen3  CHF 1599.00
Garantieverlängerung auf 6 Jahre CHF 275.00
Abholservice im Garantiefall CHF 19.00
Emotiva XPA-3 Gen3
Gesamtpreis inkl. 8.1% MwSt 1'599.00
Ratenzahlung (24 Monate) CHF 74.11 / Monat

The power amplifier performs the simple but critical job of boosting the output signals from each channel of your stereo preamp or surround sound processor to the level necessary to drive your loudspeakers. While this may seem trivial, a really good power amp is essential to having a great audio system, because any flaws in the performance of your power amp are going to limit the performance of your entire system. Every amplifier in the new Third Generation XPA series was carefully designed to deliver superb technical performance, unsurpassed sound quality, and an exceptionally accurate and dynamic rendition of all types of music, thus ensuring that your entire system will sound its absolute best. Each individual XPA amplifier is modular, and can be customized to provide exactly the power and number of channels you need today, and expanded later if your needs change; and multiple matching chassis enable you to add even more channels, or more power, for a near endless variety of options.

XPA-3

The new XPA-3 is a three-channel audiophile quality power amplifier, and is perfect for powering:

  • The three important front channels of a 5.1 channel or 7.1 channel home theater system.

Connecting an XPA-3 to the preamp outputs of your current high-quality AVR is a great way to upgrade the performance and sound quality of the three critical front channels.

Configuration:
3 x High-Powered Single-Channel Modules
(four module slots remain available for future expansion)

Power output:
275 watts/channel RMS into 8 Ohms; all channels driven
300 watts/channel RMS into 8 Ohms; two channels driven
 490 watts/channel RMS into 4 Ohms; two channels driven

Why You Need A Dedicated Power Amplifier

Most experts agree that, if you want the absolute best sound quality and technical performance, separate components are the way to go. Our new Third Generation XPA series power amplifiers are all designed from the ground up to perform a single critical task – to accurately reproduce every detail and nuance of your music. By focusing all of our efforts on that one goal, we’ve been able to design an amplifier that performs its job with remarkable precision, and avoids most of the compromises that limit lesser designs.

Experience Meets Cutting Edge Technology

When we set out to design the latest version of our XPA series of amplifiers, we analyzed everything in every amplifier we’ve ever made, from front to back, inside and out. By combining years of design experience, with a thorough understanding of recent advances in audio technology, we were able to determine several areas where we could improve on our previous designs. After carefully weighing all the options, we kept the best features of our previous models, added some new technology where we determined it would actually deliver significant improvements, and optimized several operating parameters to ensure that it would all work together flawlessly. The new Third Generation represents a significant improvement for our highly acclaimed XPA series of amplifiers – and delivers improvements in both technical performance and sound quality.

All of the models in our new Third Generation XPA amplifier family are designed to reproduce today’s high definition movie sound tracks and music sources with awesome realism, amazing finesse and precision, and without the slightest hint of strain or signal compression. They deliver a listening experience that is far above anything you can achieve with multi-purpose components like receivers, or with other amplifiers in their modest price range. We’re talking about real-world power and fidelity that you can immediately hear and appreciate.

Circuit Topology

  • The XPA-3 Gen3 is a fully modular audio power amplifier with a high-efficiency switch mode power supply (SMPS), independent, fully discrete, dual differential, high current, short signal path Class A/B amplifier modules, Optimized Class H™ power supply topology, and microprocessor-controlled fault protection.

  • The XPA-3 is powered by a high efficiency, audiophile grade, Switch Mode Power Supply (SMPS).

Audio Specifications

The XPA-3 Gen3 features three of our High-Powered Single Channel Modules.

Audio Specifications (Three High-Powered Single Channel Modules):

  • Power Output:
    300 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven.
    550 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven.
    300 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven.
    490 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven.
    275 watts RMS/channel; THD<0.1%; 8 Ohms; ALL THREE channels driven.

  • Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB).

  • Broad Band Frequency Response: 5 Hz to 80 kHz +0/-2 dB.

  • THD + noise: < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms.

  • Signal to Noise Ratio (8 Ohm load):
    > 117 dB; ref FTC rated power; unbalanced input (A-weighted).
    > 91 dB; ref 1 watt; unbalanced input (A-weighted).

  • Minimum Recommended Load Impedance (per channel): 4 Ohms
    (which equals one 4 Ohm load or two paralleled 8 Ohm loads).

  • Damping Factor (8 Ohm load): > 500.

  • Input Sensitivity (for rated power; 8 Ohm load): 1.5 V.

  • Gain: 29 dB.

  • Maximum Power Consumption: 1,400 watts.
    Note: The values shown refer to the amount of power the amplifier would
    consume while playing test tones continuously, on all channels, at full power, into a load bank. Therefore they are not at all characteristic of what you would expect when playing music or the sound track from a movie. Normal audio signals are dynamic, so the amount of power they require from second to second varies widely, and the average is far lower than this. With normal content, even playing very loudly, one of our amplifiers will consume far less power than indicated in the chart, so these values should not be considered to be a circuit requirement for normal operation.

  • Input Impedance:
    33 kOhms (balanced).
    23.5 kOhms (unbalanced).

Input And Output Connections

  • Input Connections (High-Powered Single Channel Modules):
    Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable.

  • Input Connections (Stereo Modules):
    2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable.

  • Speaker Output Connections: Audiophile grade, gold plated, 5-way binding posts.

  • Trigger:
    Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required.
    Trigger Output: 12 VDC; can drive any load up to 120 mA.

Power Requirements

  • Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected).

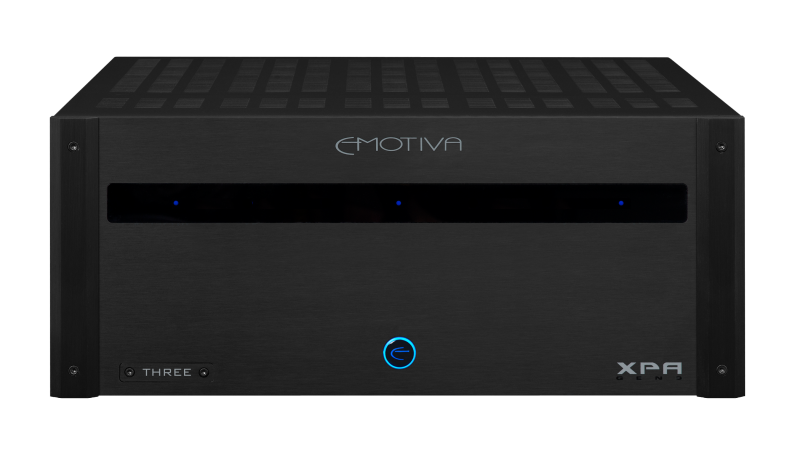

Front Panel Controls and Indicators

  • Standby: push button (halo ring changes color to indicate Standby or On).

  • Status LEDs: one per channel; blue.
    Status LEDs change to red to indicate a fault condition.

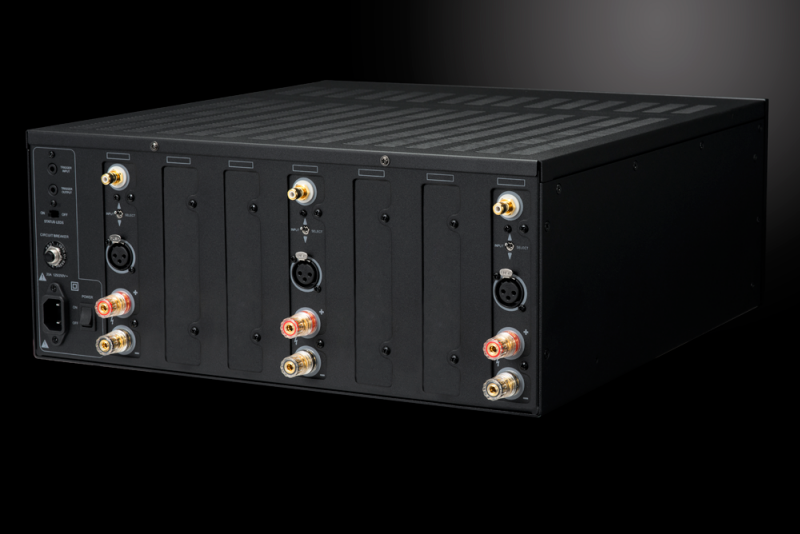

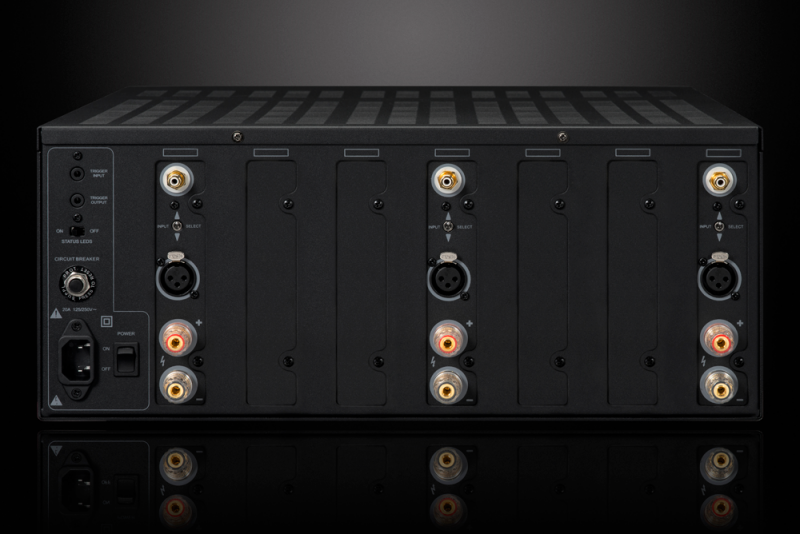

Rear Panel Controls

  • AC Power switch: rocker switch (switches AC main power).

  • Status LEDs switch: disables front panel Status LEDs and dims Standby button halo.

  • Input selector switches (one per channel):
    metal toggle switches; select between balanced and unbalanced inputs.

  • Circuit Breaker: press button to reset circuit breaker.

Protection

  • The XPA Gen3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.

Mechanical

  • Dimensions:
    17” wide x 8” high x 19” deep (unboxed; including feet).
    17” wide x 7” high x 19” deep (unboxed; without feet).
    24-1/2” wide x 12” high x 24-3/4” deep (boxed).

  • Weight:
    39 lbs (unboxed).
    44 lbs (boxed).
