Chord Dave Silver [SUPERDEAL]

Tagespreis auf Anfrage unter [email protected] oder 043 534 57 25.

Digitaler zu Analog Audio-Converter DAC, Kopfhörerverstärker und Vorverstärker.
Chord Dave Silver [SUPERDEAL]
Preis pro Stück
Lieferung Auskunft unter [email protected]
Abholung Auskunft unter [email protected]


Versandkosten Gratis
Garantie 5 Jahr(e)
Chord Dave Silver [SUPERDEAL]  CHF 12398.00
Abholservice im Garantiefall CHF 19.00
Chord Dave Silver [SUPERDEAL]
Gesamtpreis inkl. 8.1% MwSt 12'398.00
Ratenzahlung (24 Monate) CHF 574.63 / Monat

Unser Tagespreis auf Anfrage unter [email protected] oder 043 534 57 25.


Mit DAVE hat Chord den ultimativen 32-bit/768kHz und DSD 256 DAC entwickelt. Nun müssen sich alle Konkurrenten an dieser neuen Referenz der Musikalität und Präzision messen!

Um das Beste aus der Musik die Sie bereits besitzen zu machen, sublimieren die außergewöhnlichen Chord DACs auch Ihre 16-Bit / 44,1 kHz Dateien (MP3, AAC, FLAC, WAV, AIFF, usw.). Sie sind auch die idealen Begleiter Ihrer Online-Musikdienste wie Tidal, Spotify, Qobuz Apple Music, usw.

DAVE is a highly advanced reference-grade DAC, digital preamp and headphone amplifier. Hand-made in Kent, DAVE is based around a proprietary FPGA (Field Programmable Gate Array) offering more than ten times the program capacity of its predecessor.

At its heart lies a new (and in electronics terms, huge) LX75 version of the Spartan 6 Field Programmable Gate Array (FPGA). The FPGA’s extraordinary capability enables a number of key sonic benefits including significantly improved timing and the best noise-shaper performance of any known DAC. DAVE’s technology delivers music with unmatched reality and musicality, with an unrivalled timing response.

Display

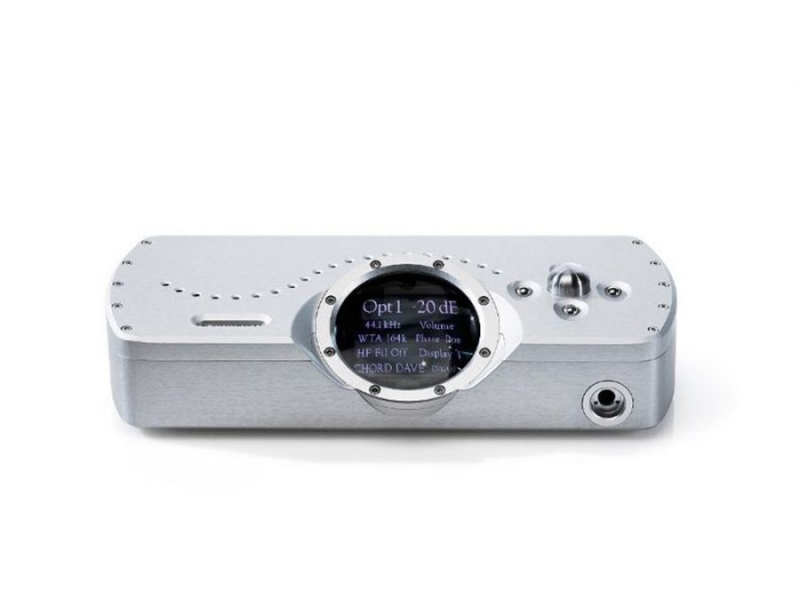

A key benefit over its predecessor is a full-sized LCD display, showing input, sample frequency and volume, plus set-up and configuration options. The display, which sits behind the famous Chord porthole, is clearly visible from a variety of angles and retains the signature colour display for volume and sample rate as introduced by the landmark Hugo DAC/headphone amp. On its fascia, DAVE also features a rotary encoder with a large stainless steel controller and ball buttons, enabling direct interactivity in addition to the supplied remote control.

DAVE’s advanced technology is enshrined in Chord Electronics’ trademark casework which has been precision-milled from solid aircraft-grade aluminium to deliver functional strength and rigidity, as well as great beauty. Simply stated, DAVE is the most advanced DAC in the world, something Chord Electronics is immensely proud of.

Technology in depth: new WTA filter
Chord Electronics has implemented a brand new WTA (Watts Transient Aligned) filter with 164,000 taps. WTA filtering is now up to 256 FS (that's 256-times the sample frequency) — no other DAC has ever FIR filtered at such a high rate! In order to process signals at this unprecedented rate, DAVE has massive parallel-processing capacity with 166 separate DSP cores just for the WTA filtering alone. This enables DAVE to reproduce the original unsampled analogue signal more accurately than any other DAC.

The output stage has been advanced with a new 20-element Pulse Array DAC and a unique second-order analogue noise-shaper, which gives ultra-high-frequency linearity. Its output feeds both balanced XLR and single-ended RCA outputs, as well as an advanced headphone output with more than enough capability for the most impedance-challenging headphones.

Unser Tagespreis auf Anfrage unter [email protected] oder 043 534 57 25.

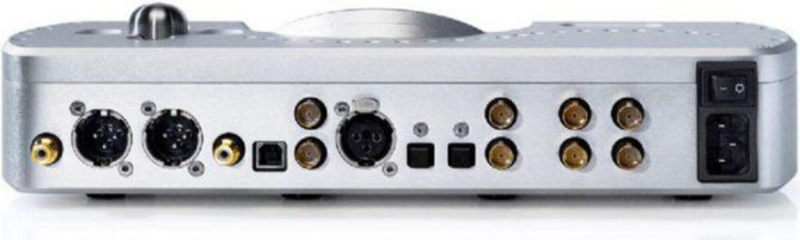

Inputs:

  • USB B-style 44 kHz to 768 kHz
  • DXD and Quad DSD
  • 2x optical 44kHz to 192kHz
  • 1 x AES 44kHz to 192kHz
  • 4 x Coax 44kHz to 384kHz
  • Dual-data mode available

Outputs digital:

  • 2x ultra-high-speed coax 768kHz dual-data mode (for use with future-unannounced Chord Electronics products)
  • Maximum output voltage: 6 volts RMS
  • THD and noise at 2.5 volts: RMS 0.000015 %
  • THD and noise at 2.5 volts: 127dBA Awt (124dBA into 33 ohms)
  • Dynamic range at -60 dBFS 1kHz -127 dBA A wt
  • (No measurable noise floor modulation, no a harmonic distortion)
  • (Analogue distortion characteristic: no distortion for small signals)
  • Power requirements: mains power 80 volts to 260 volts; AC 20 watts
