Chord CPA 3000 Silver [SUPERDEAL]

Tagespreis auf Anfrage unter [email protected] oder 043 534 57 25.

Vorverstärker mit sieben Eingangssignalen
Chord CPA 3000 Silver [SUPERDEAL]

Unser Tagespreis auf Anfrage unter [email protected] oder 043 534 57 25.


Die Chord CPA3000 Stereo-Vorstufe ist die Ideal-Partnerin der Chord SPM1200 und SPM1400 Endstufen. Wie alle Vorstufen aus dem Hause Chord ist auch sie vollkommen symmetrisch aufgebaut und besitzt deren legendäre Volumen-Kontrolle.

Chord Electronics Ltd is pleased to introduce the CPA3000 as the next in the range of our new generation of pre-amplifier products. Using similar technology as the highly successful CPA5000 reference pre-amplifier the CPA3000 also features a high frequency switch mode power supply and ultra low noise circuitry to give the very best noise floor performance.

Four pairs of balanced style XLR inputs allows for great flexibility with two additional RCA inputs for unbalanced sources. A single tape loop is available for playback and also to record from any of the connected sources.

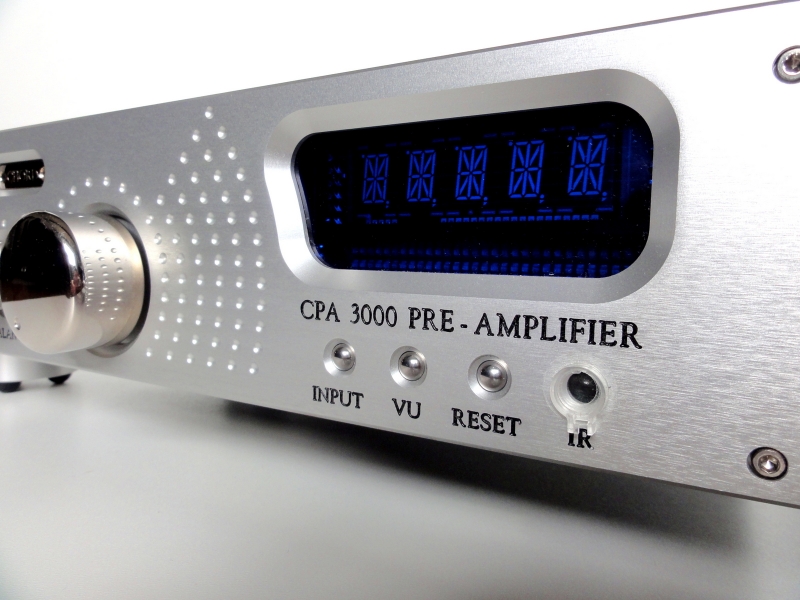

Front panel controls allow for easy input and output selection if required but changes can also be made via the supplied remote control. Two polished and nickel plated aluminium controls feature prominently to manually adjust the volume and the balance and give easy visual reference of the settings. Using the precision motorised Alps potentiometers levels can also be adjusted by remote control. All settings are clearly visible via the large easy to read vacuum fluorescent display.

The CPA3000 is feature rich with the inclusion of fully balanced AV Bypass circuitry that allows for direct connection to an AV processor at full signal level, routing the signal directly from input to output avoiding the volume potentiometer. This gives a truly flexible system for the purest two channel stereo reproduction converting for use in a multichannel AV system with a simple press of a switch.

Cleverly situated under the main display, signal detection indicators have been replaced with highly accurate VU meters. These give both clear signal detection and accurate input level. Naturally via the front panel control, these may be selected or disabled as required.

Remote triggering outputs are available at the rear of the unit to activate power amplifiers or AV processors. These are active as soon as power is applied via the rear switch.

Packed with features and universal connectivity the CPA3000 also features our trademark aluminium casework construction. This gives it stunning looks and solid build quality to match. The CPA3000 is the ideal pre-amplifier for any system.

Unser Tagespreis auf Anfrage unter [email protected] oder 043 534 57 25.

Ein- und Ausgänge :

  • 7 Stereoeingänge und 3 Stereoausgänge
  • 3x unsymmetrische RCA-Stereoeingänge - Line-Eingang 5, Line-Eingang 6 und Band 1
  • 4x symmetrische XLR-Stereoeingänge - Line Eingang 1, Line Eingang 2, Line Eingang 3 und Line Eingang 4
  • 1x symmetrischer symmetrischer Stereo-XLR-Ausgang
  • 2x unsymmetrischer Stereoausgang RCA
  • 1x XLR AV symmetrische Stereoeingänge Bypass Bypass Bypass Bypass AV
  • Frequenzbereich: 2,5 Hz - 200 kHz +/- 3 dB
  • Gesamtharmonische Verzerrung: 0,002% 20Hz - 20kHz
  • Intermodulationsverzerrung: -100dB an allen Eingängen
  • Signal-Rausch-Verhältnis: -93dB an allen Eingängen
  • Kanaltrennung: 10Hz @ 90dB, 1kHz @ 90dB, 10kHz @ 90dB, 20kHz @ 85dB
  • Kanalabgleich: 0,01dB
  • Maximale Eingangsspannung: 10 V RMS symmetrisch - 5 V RMS asymmetrisch
  • Maximale Ausgangsspannung: 15 V RMS symmetrisch - 5 V RMS unsymmetrisch
  • Ausgangsoffset: 0mV (beide Kanäle)
  • Potentiometerleistung: 0dB 0,5dB, -20dB 0,2dB, -60dB 0,24dB (13 Sekunden Vollhub)
  • Nominale Verstärkung: Festgelegt auf x 1,1
  • Eingangsimpedanz: 94 kΩ symmetrisch - 75 kΩ unsymmetrisch
  • Ausgangsimpedanz: 100Ω (Kurzschlussschutz)
  • Betriebsspannung: 85v - 270v AC (50Hz - 60Hz) Automatische Umschaltung
  • Abmessungen ohne Integra-Füße: 420mm (B) x 355mm (T) x 88mm (H)
  • Abmessungen mit integrierten Integra-Füßen: 480mm (B) x 355mm (T) x 128mm (H)
  • Gewicht: 10kG
