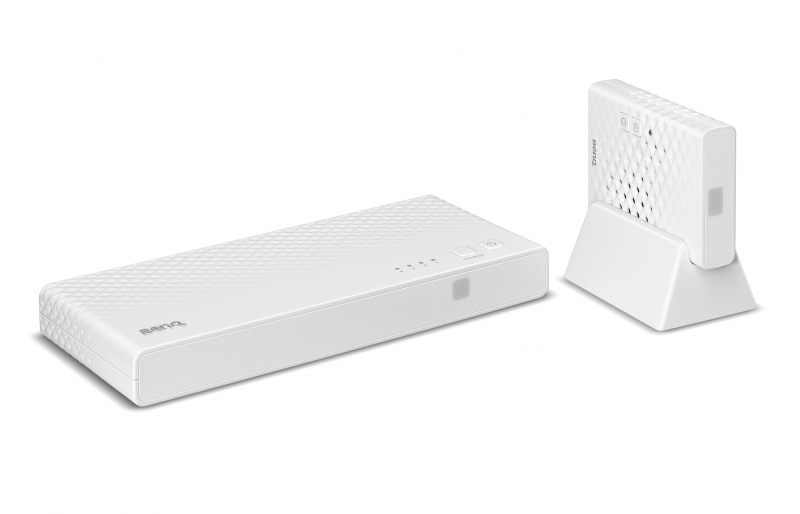

| Model Name | WDP02T (Transmitter) / WDP02R (Receiver) |
| Wireless Operating Frequencies | 4.9~ 5.9GHz (Include non-DFS and DFS Frequency Bands) |
| Antenna | High performance internal antennas x 4 |
| System Latency | <1ms |
Audio Bit Rate Support  |
| Up to 6 Mbps audio stream: | Support AC3 and DTS |
| 2 Channel PCM : | 16~24 bits audio sample with 32~96KHz sampling rate |
| Transmission Distance | The maximum video transmission range is 30 meters (100 feet)
Line of sight (LOS) scenarios (The minimum range is 2 meters)
* if more than one pair is in operation, each of transmitter and receiver should be at least 2 meters away from one another. |
| Interface |

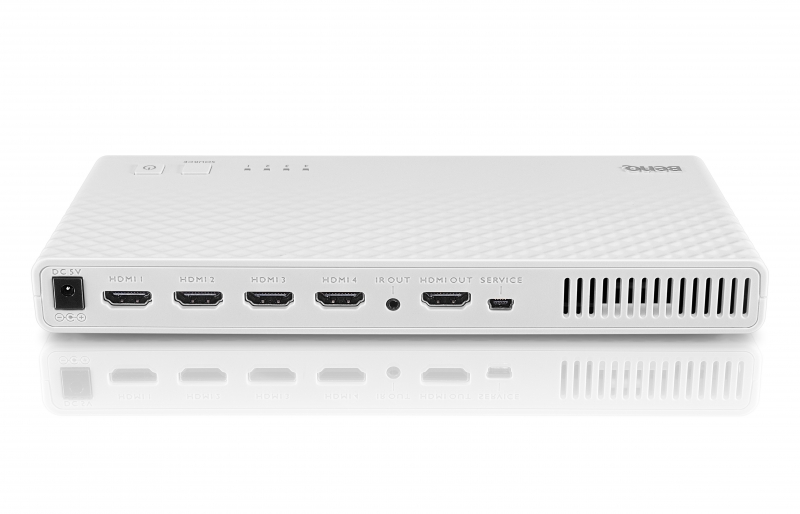

| A/V | | HDMI Input | Transmitter:X4
Receiver:N/A | | HDMI Output | Transmitter:X1
Receiver:X1 | |
| IR Control | | IR Sensor | Transmitter:Yes
Receiver:Yes | | IR Blaster Extender | Transmitter:Yes (2.5mm Jack)
Receiver:N/A | | IR Sensor Extender | Transmitter:N/A
Receiver:Yes | |
| Switches | | Power | Transmitter:Yes
Receiver:Yes | | Source | Transmitter:Yes
Receiver:Yes | |
| LEDs | | Power | Transmitter:X1 (Red/Blue)
Receiver:X1 (Red/Blue) | | Source | Transmitter:X4 (Blue)
Receiver:X1 (Blue) | | Signal Status | Transmitter:N/A
Receiver:OSD displayed | |
| Power | | Input | Transmitter:5V DC Jack
Receiver:5V mini USB | |
| Dimensions (mm³) | Transmitter:227(W) x 94(L) x 26(H)
Receiver:68(W) x 91(L) x 20(H) |
| Power Supply | 100~ 240V AC in, 5V 2A DC out Power Adaptor |
| Operating Temperature | 0°~40°C |
| Package Contents |
| Color Carton | |
| WHDI Tramsmitter / Receiver | |
| Remote Control | X 1 |
| IR Blaster Cable | X 1 |
| Mounting holder | X 1 |
| Screw | X 2 |
| Velcro | X 1 |
| Cradle | X 1 |
| Tx DC Power Adaptor | (w/ multi-nation plugs - US/UK/EU/CN/AU) |
| Mini USB Cable + RX Power Adaptor | (w/ multi-nation plugs - US/UK/EU/CN/AU) |
| HDMI Cable | X 1 |
| User Manual CD(24L) | |
| Quick Start Guide(18L) | |
| Color Space | YUV/RGB |
| Deep Color | | Yes | TX input : 12 / 10 / 8 bits RX : 8bit output.1
TX output : 8bits | |
| HDCP | Yes |
