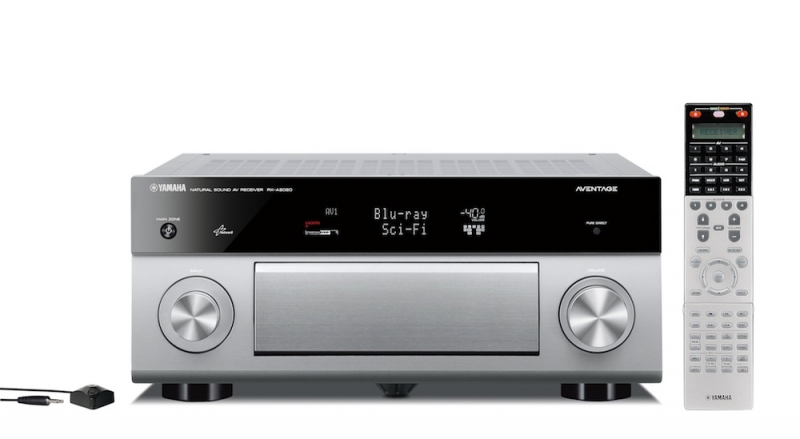

Yamaha RX-A2020 Titan

Yamaha RX-A2020

9.2-Kanal AVENTAGE Receiver: Die Kombination aus aufwendiger Konstruktion und Implementierung neuester Technologien versprechen ein Klangerlebnis der Extraklasse! A.R.T. Wedge Design, symmetrischer Verstärkeraufbau, stabiles Chassis, neu entwickelte High Resolution Music Enhancer-Funktion; AirPlay, 4K Upscaling, 8/2 HDMI-Anschlüsse, Zone 2/3 Konfiguration.

• AVENTAGE AV-Receiver: Entwickelt um das höchste Maß an Audioleistung zu erreichen
• Das Frontpanel aus Aluminum bietet visuelle und akustische Vorteile
• Anti Resonance Technology (A.R.T) Wedge garantiert eine überragende Klangqualität dank Vibrationsdämpfung
• H-förmige Verstrebung, symmetrischer Verstärkeraufbau und ein stabiles Chassis mit aufwendiger Bodenkonstruktion
• High Resolution Music Enhancer für eine höhere Musikqualität des Original Inhalts
• Kraftvoller 9-Kanal Surround Sound mit je 220 W/Kanal (4 Ohm, 1 kHz, 0,9% THD, 1ch driven)
• Hochwertiges HQV Chipset "VHD1900" für HD/SD Video
• Netzwerkfunktionen, wie AirPlay und AV Controller-App
• 4K Pass-Through und Hochskalierung für Super High Resolution Bilder der nächsten Generation
• Digitaler USB-Port am Frontpanel zum Anschluss Ihres iPods, iPhones und iPads
• HDMI: 8 Eingänge (1 an der Front) und 2 Ausgänge (simultan) mit 3D und Audio Return Channel
• HDMI Zone B für Audio-/Video-Streaming in einen anderen Raum (gleicher Inhalt wie in der Hauptzone)
• YPAO R.S.C. (Reflected Sound Control) für eine automatische Lautsprecherkonfiguration mit Raumresonanzkontrolle
• Dialogue Lift and Dialogue Level Adjustment für den klanglichen Ausgleich zwischen Dialog und Gesang
• Vielseitige Zonensteuerung, wie Zone 2/3 on/off, Zone 2/3 video assign und Party Modus
• ECO mode reduziert den Stromverbrauch um mindestens 20%

Yamaha AV Receivers are the perfect control centers for a home entertainment network. Their network functions include support for FLAC 96/24 (high quality lossless format), compatibility with Windows7 and DLNA 1.5 (for finding and playing digital sources) and web browser control from a PC or PDA.

The DLNA Certification and Logo Program: (a) ensures that all relevant mandatory formats and features are supported by the products, and (b) confirms interoperability between devices in support of mandatory formats and features.
DLNA Certified is a trademark of the Digital Living Network Alliance.

Dolby® TrueHD ist Dolbys nächste Generation verlustfrei arbeitender Technik - entwickelt für hochauflösende, disc-basierte Medien. Dolby TrueHD liefert verführerischen Sound, der bitidentisch mit der Originalaufnahme im Studio ist. Dolby TrueHD entfaltet das volle Potential hochauflösender Programmangebote zukünftiger Discformate. In Verbindung mit hochauflösendem Video („HDTV“) bietet Dolby TrueHD ein bislang unerreichtes Erlebnis im Heimkino - der Ton ist so überwältigend wie das hochauflösende Bild.

DTS-HD Master Audio is an advanced lossless audio technology developed for high-definition disc-based media including Blu-ray Disc. Selected as an optional audio standard for Blu-ray Disc, this technology delivers sound that is bit-for-bit identical to the studio master, offering a high-definition home theater experience. Supporting bitrates up to 24.5 Mbps for Blu-ray Disc, DTS-HD Master Audio can carry up to 7.1 discrete channels of 24-bit/96 kHz audio simultaneously. Supported by HDMI version 1.3 and designed for the optical disc players and AV receivers/amplifiers of the future, DTS-HD Master Audio also remains fully compatible with the
existing multichannel audio systems that incorporate DTS Digital Surround.
DTS is a registered trademark and the DTS logos, Symbols, DTS-HD and DTS-HD Master Audio are trademark of DTS, Inc.

HDMI (High-Definition Multimedia Interface) is the first industrysupported, uncompressed, all-digital audio/video interface. Providing an interface between any source (such as a set-top box or AV receiver) and an audio/video monitor (such as a digital television), HDMI supports standard, enhanced or high-definition video as well as multichannel digital audio using a single cable. HDMI transmits all ATSC HDTV standards and supports 8-channel digital audio, with bandwidth to spare to accommodate future enhancements and requirements. When used in combination with HDCP (High-bandwidth Digital Content Protection), HDMI provides a secure audio/video interface that meets the security requirements of content providers and system operators. For further information on HDMI, visit the HDMI website
at “http://www.hdmi.org/”.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

HQV

HQV and the HQV logo are trademarks or registered trademarks of Integrated Device Technology, Inc. in the United States and other countries.

4K Pass-Through

4K Pass Through receives super high-def resolution video and pass it to a 4K compatible monitor.
This ensures compatibility with the latest super high resolution video formats.

This unit allows you to configure a multi-zone audio system. The multi-zone configuration feature enables you to set this unit to reproduce separate input sources in the main zone, second zone (Zone 2) and third zone (Zone 3). You can control this unit from the second or third zone using the supplied remote control.

CINEMA DSP 3D mode

The actually measured sound field data contain the information of the height of the sound images. CINEMA DSP 3D mode achieves the reproduction of the accurate height of the sound images so that it creates the accurate and intensive stereoscopic sound fields in a listening room.

VIRTUAL Presence Speaker

Virtual Presence Speaker mode provides the 3D sound without front presence speakers. Tell customers that the best way to enjoy 3D movies at home is with sound from a Yamaha AV Receiver equipped with CINEMA DSP 3D.

SILENT CINEMA

Yamaha has developed a natural, realistic sound effect DSP algorithm for headphones. Parameters for headphones have been set for each sound field so that accurate representations of all the sound field programs can be enjoyed on headphones.

Compressed Music Enhancer

Yamaha employs sophisticated digital signal processing with exclusive algorithms to enable playback that improves the performance of compressed music formats, including MP3 and WMA. With the Compressed Music Enhancer, highs and especially lows are richer and smoother, bringing music back to life to be as close to the original as possible.

SCENE A NEW LEVEL OF OPERATING EASE

With most AV components, watching or listening to what you want requires a number of steps. You have to turn on the AV component, turn on another component like a DVD player, select the source, select the surround mode and then press play. But with Yamaha’s SCENE feature all you need to do is press one button. Both components turn on, the correct DSP setting is made, and play begins. This SCENE function allows you to change input sources and sound field programmes with one button. Four SCENE buttons are available for different usages, such as playing movies or music.

YPAO Automatic System Calibration

Yamaha’s YPAO system uses a small microphone and sophisticated equalization to automatically set the best sound for any room, no matter where the speakers are. First it checks the speaker connections and phase of each speaker. Then it sends out tones which are captured by the microphone to analyze the room acoustics and sets a variety of parameters, such as the speaker size, the distance of the speakers and even the sound pressure level, etc. Until it achieves the best sound conditions for your room and you don't have to do anything!

ECO mode

ECO mode reduces power consumption by about 20%*. It can be set easily from the top of the GUI/OSD menu.
*Compared to power consumption when ECO mode is off. (Yamaha measurement).
