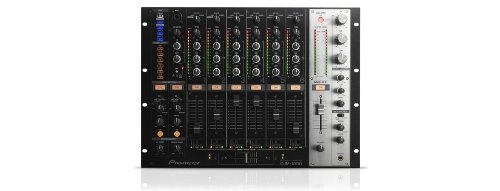

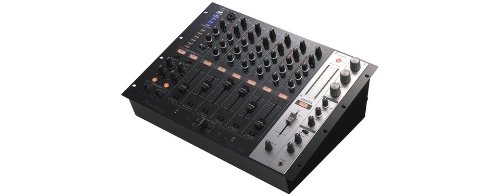

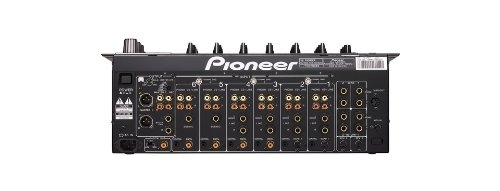

Pioneer DJM-1000

Channels

• No. of Channels 6

• Channel EQ 3 band

• EQ Range -26 ~ +6 dB

• Fader Curve 16 Curves

• Rotary Faders Optional

• Level MeterType Individuell

• Level Meter Size 15 Segment

Input

• CD/LINE Input 6

• LINE (1/4 inch Phone) 6

• PHONO Input 6

• Digital Input (Coaxial) 4

• Digital Input (Pioneer Link) 2

• MIC Input (XLR) 1

• MIC Input (1/4 inch Phone) 2

• RETURN (1/4 inch Phone) 2

Output

• Master Output (XLR) 1

• Master Output (RCA) 1

• Booth Output (1/4 inch Phone) 1 (T.R.S.)

• Rec Out (RCA) 1

• Digital Out (RCA) 1 (SP/DIF) (48 kHz oder 96 kHz)

• Send (1/4 inch Phone) 2

Master

• Master Balance Ja

• Isolator Ja

• Level Meter Size 15 Segment

• Master Out Attenuator Ja

Cross Fader

• Cross Fader Type Carbon Rail

• Fader Curve 16 Curves

• Assignable ja

• Field Replaceable Ja

Monitoring

• Booth Monitor ja

• Booth Monitor EQ ja - 2 band

• Cue Type 3

Effect/Sampler

• 3 Band Isolator Ja

Mic

• Mic Connection Nutrik Combo + 1/4" (x 2)

• Mic EQ 3 band

• Mic EQ Range -6 ~ +6 dB

• Talkover 3 Position Switch

• Talkover Attenuator Ja

Midi Info

• MIDI Out 1

Allgemein

• Dimensions (W x H x D) 482 x 214 x 375 mm

• Weight 12 kg

• Power Consumption 63 Watt

• SN Ratio: Line 104 dB

• SN Ratio: Phono 88 dB

• SN Ratio: Mic 84 dB

• Harmonic Distortion 0.05%

• Crosstalk 88 dB
