Inside this projector there is a high-pressure mercury lamp. This type of lamp may break, emitting a loud noise, when it is subjected to shock or after it has been used for some length of time. Please note that, depending on how the projector is used, there can be considerable variance between individual lamps as regards how many hours they will operate before requiring replacement. A separate charge is payable for installation, if required.
Design and specifications are subject to change without notice.
The projector lamp requires periodic replacement and is not covered by warranty.
Please be aware that, because the D-ILA device is manufactured using highly advanced technologies, 0.01% or fewer of the pixels may be non-performing (always on or off).
Deep, true black level with the industry's highest1 native
contrast ratio of 30,000:1

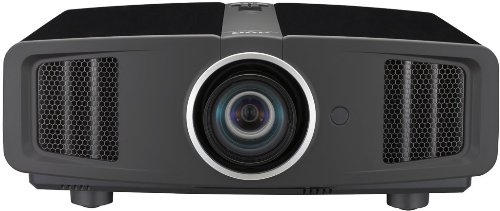

The new DLA-HD100 features enhanced 0.7-inch full HD D-ILA devices
and an improved optical engine, which allow it to achieve an incredible
native contrast ratio of 30,000:1 — the industry’s highest!
c 0.7-in (16:9) Full HD D-ILA device x 3
Newly improved, the device exhibits a significant reduction in stray light
caused by phenomena such as the dispersion and diffraction of reflected
light. JVC succeeded in decreasing orientation irregularities by reducing
the gaps between pixels, adopting improved liquid crystals and other
innovative technologies, enabling the device itself to achieve a contrast
ratio of 40,000 to 1.
Optical engine with wire grid polarizers
The enhanced optical engine dramatically improves the precision of light
polarization, helping to prevent light leakage into the projection lens and
allowing for true black level reproduction.
Broader colour space ensures excellent colour rendition
The DLA-HD100 offers significantly improved colour rendition to match
its true black level reproduction as colour space has been broadened to
ensure more natural and vivid colours.
High-performance 2x motorised zoom lens enables flexible set-up
The high-performance 2x zoom lens found on DLA-HD100 is made by
Fujinon Corporation and features a large-diameter, all-glass lens assembly
with 16 elements in 13 groups. This lens significantly reduces chromatic
aberration and provides a high-resolution picture by ensuring that
individual pixels remain perfectly focused on the screen. Motorised focus
also allows you to enjoy razor-sharp image reproduction in every viewing
situation even in smaller rooms where
recommended viewing distances to the
screen cannot be obtained. Best of all,
setting up the DLA-HD100 is easy too as
±80% vertical and ±34% horizontal lens
shift function allows the projected picture
to be moved horizontally or vertically
without having to physically reposition the
projector.
Customised gamma control on-screen
The DLA-HD100 makes possible manual adjustment of gamma control
via an on-screen display, ensuring accurate brightness levels and colour
ratios to suit viewer preferences. What’s more, the primary red, green and
blue colours can be individually adjusted via the remote controller.

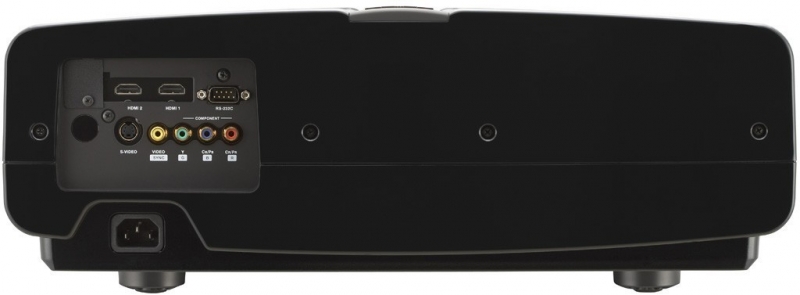

Compatibility with HDMI ver. 1.3 (Deep Color) specifications
The DLA-HD100 incorporates two HDMI inputs compatible with version
1.3 specifications, which allow you to take full advantage of the higher
bandwidth of 225 MHz, increased
colour depth from millions of colours
to billions of colours (Deep Color) as
well as enhanced resolution and
frame rates (for more details, please
refer to the HDMI ver. 1.3 specifications
at http://www.hdmi.org/).
Conventional Customised Gamma Control
